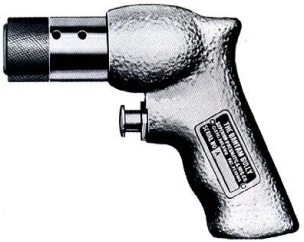

Model #90000 - Pistol Grip
Specifications
- Weight: 20 oz
- Blows Per Minute: 0 - 13,000
- Length: 6"
- Air Inlet: 1/4" NPT
- Air Consumption: 3CFM at 90PSI
- Tool Shank: 7/16" octagon
- Bore and Stroke: 11/16" X 3/4"
- Recommended Hose: 1/4" or 3/8"
Air Hammers
Available Air Hammer Models
Filters:
The Bantam Bully
Features
Description: The Bantam Bully weighs only 20 oz and is equipped with our patented metering trigger. The piston is the only moving part besides the metering trigger, assuring long life and low maintenance cost.
Applications: Minor part assembly, riveting, weld scaling, inserting Roll Pins, applying air conditioner knobs, upholstery clips, etc., pushing on SPEED NUTS and PALNUTS.

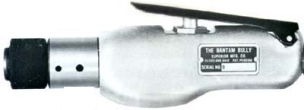

Model #90001 - Straight Handle
Specifications
- Weight: 20 oz
- Blows Per Minute: 0 - 13,000
- Length: 7 1/4"
- Air Inlet: 1/4" NPT
- Air Consumption: 3CFM at 90PSI
- Tool Shank: 7/16" octagon
- Bore and Stroke: 11/16" X 3/4"
- Recommended Hose: 1/4" or 3/8"
The Big Bully
Features
Description: The Big Bully weighs 2 lb, 4 oz and is equipped with our patented metering trigger. The Big Bully is sturdy construction with a minimum of moving parts ensuring long life and freedom from service problems.
Applications: Heavy weld chiseling and routing, scaling, gouging and grooving, cutting and star drilling, cleaning concrete from ready-mix trucks, and quickly removing fins on foundry castings.

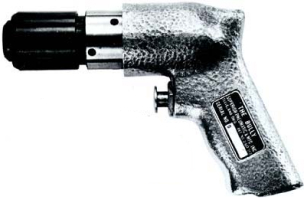

Model #120000 - Pistol Grip
Specifications
- Weight: 2 lb 4 oz
- Blows Per Minute: 0 - 9,000
- Length: 6"
- Air Inlet: 1/4" NPT
- Air Consumption: 6CFM at 90PSI
- Tool Shank: 15/32" hexagon
- Bore and Stroke: 3/4" X 1 5/32"
- Recommended Hose: 1/4" or 3/8"

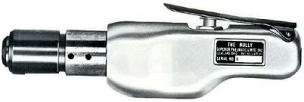

Model #120001 - Straight Handle
Specifications
- Weight: 2 lb 4 oz
- Blows Per Minute: 0 - 9,000
- Length: 9 1/8"
- Air Inlet: 1/4" NPT
- Air Consumption: 6CFM at 90PSI
- Tool Shank: 15/32" hexagon
- Bore and Stroke: 3/4" X 1 5/32"
- Recommended Hose: 1/4" or 3/8"
Scaling & Chipping
Features
Description: The Scaling & Chipping Air Hammers come with our patented safety chuck and metering trigger. In non-ferrous casting plants, our scaling & chipping models can replace heavy No. 1 chipping hammers.
Applications: Tuck pointing, heavy weld scaling, cleaning "hard to reach" places, and busting bolts and rivets

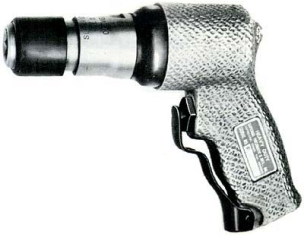

Model #60010 - Pistol Grip
Specifications
- Weight: 3 lb 4oz
- Blows Per Minute: 0 - 4,200
- Length: 8"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Locking Chuck
- Piston: 11/16"
- Piston Length: 1 25/32"
- Piston Weight: 1 oz
Model #60011 - Straight Handle
Specifications
- Weight: 2 lb 4 oz
- Blows Per Minute: 0 - 4,200
- Length: 7 1/4"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Locking Chuck
- Piston: 11/16"
- Piston Length: 1 25/32"
- Piston Weight: 1 oz
Riveting
Features
Description: The Riveting Air Hammer has a beehive-type spring retainer, uses standard .401 Parker Taper Shank Chisels, and comes with our patented metering trigger. The operator can easily rotate the cutting tool in any direction while the hammer is still in use.
Applications: Panel cutting, removing drum lids, rivet and bolt busting, and setting soft iron or aluminum rivets.

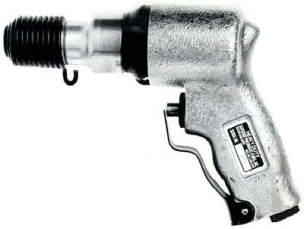

Model #40000 - Pistol Grip
Specifications
- Weight: 3 lb 12 oz
- Blows Per Minute: 0 - 3,500
- Length: 8"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Spring Type
- Tool Shank: .401 Parker Taper
- Piston: 3/4"
- Piston Length: 2 5/16"
- Piston Weight: 8 oz
Model #40005 - Straight Handle
Specifications
- Weight: 4 lb
- Blows Per Minute: 0 - 3,500
- Length: 10 5/8"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Spring Type
- Tool Shank: .401 Parker Taper
- Piston: 3/4"
- Piston Length: 2 5/16"
- Piston Weight: 8 oz

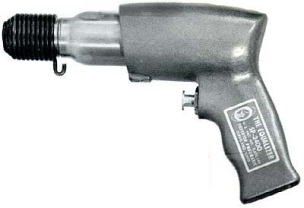

Model #240001 - Pistol Grip
Specifications
- Weight: 4 lb
- Blows Per Minute: 0 - 3,400
- Length: 8 1/2"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Spring Type
- Tool Shank: .401 Parker Taper
- Piston: 3/4"
- Piston Length: 2 1/2"
- Piston Weight: 8 oz

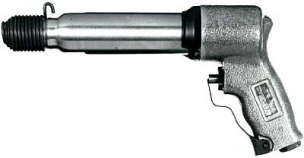

Model #80010 - Heavy Duty Pistol Grip
Specifications
- Weight: 4 lb 12 oz
- Blows Per Minute: 0 - 2,200
- Length: 10 1/2"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Spring Type
- Tool Shank: .401 Parker Taper
- Piston: 3/4"
- Piston Length: 4"
- Piston Weight: 10 oz
Model #80012 - Heavy Duty Straight Handle
Specifications
- Weight: 6 lb 4 oz
- Blows Per Minute: 0 - 2,200
- Length: 13"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Spring Type
- Tool Shank: .401 Parker Taper
- Piston: 3/4"
- Piston Length: 4"
- Piston Weight: 10 oz

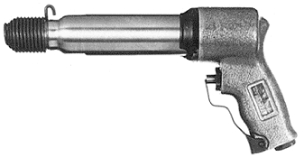

Model #84980 - Heavy Duty Pistol Grip
Specifications
- Weight: 4 lb 12 oz
- Blows Per Minute: 0 - 1,800
- Length: 10 1/2"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Spring Type
- Tool Shank: .498 Parker Taper
- Piston: 3/4"
- Piston Length: 2 1/2"
- Piston Weight: 10 oz
Model #84982 - Heavy Duty Straight Handle
Specifications
- Weight: 5 lb
- Blows Per Minute: 0 - 1,800
- Length: 13"
- Air Consumption: 4CFM at 90PSI
- Tool Retainer: Spring Type
- Tool Shank: .498 Parker Taper
- Piston: 3/4"
- Piston Length: 2 1/2"
- Piston Weight: 10 oz
